Place of Origin: | Mainland China |
Brand Name: | NC901 |
Certification: | ISO9001,CE,SGS |
Model Number: | 901 |
Minimum Order Quantity: | 100 pcs |
---|---|
Price: | $1-60 |
Packaging Details: | Crate |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 80,000 pcs monthly |
Part Name: | Railway Buffer Housing | Material: | Cast Steel |
---|---|---|---|
Process: | Precision Investment Casting | Application: | Rail Maintenance |
Surface: | Sandblasting | Size: | As Per Drawing |
High Light: | steel investment casting,investment and precision casting |

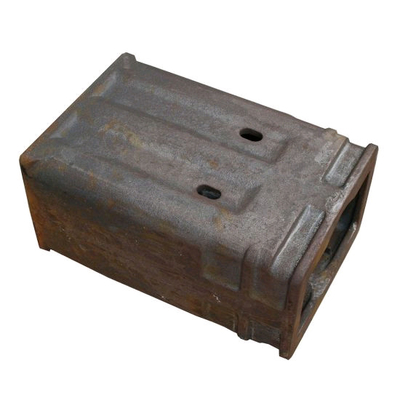

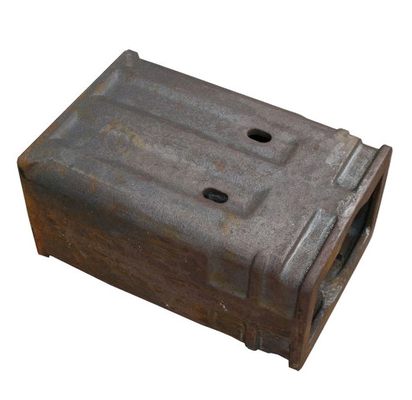

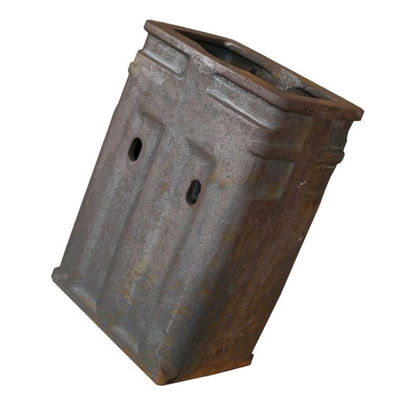

Qualified OEM Design MT-2 MARK 50 Investment Casting Railway Buffer Gear Housing
Description
We can produce and supply with you following type of draft gear for railway vehicles,ex: MT-2 ,MK50 draft gear ,MT-3 buffer,
and Stucki type ,etc.
Product Features
With the advantages of low inpedance, large capacity, high absorptivity, steady performance, long lifetime, and easy to install and use,
the buffer meets the requirement of braking for the general rail wagons and heavy wagons.
Product Details
Model | Material | Standard |
MT-2 | Grade E casting steel | TB/T2942-1999 |
MT-3 | Grade E casting steel | TB/T2942-1999 |
Stucki | Grade E casting steel | AAR M-201 |
Name | Main Parameters | |||
X (mm) | Y (mm) | Z(mm) | Weight(kg) | |
MT-2 Draft gear | ≤561 | 320 | 227 | 175 |
Model | Main Performance Parameters | ||||
resistance | Stroke | initial capacity | official capacity | absorptivity | |
(MN) | (mm) | (KJ) | (KJ) | % | |
MT-2 Draft gear | ≤2.27 | ≤83 | ≥40 | ≥50 |
≥80 |
