Prestressed Post Tension Anchor Cast Iron Round Anchor Bearing Plate

Product Details:

Place of Origin:	Mainland China
Brand Name:	NC109
Certification:	ISO9001,BV,SGS
Model Number:	109

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	$1-50
Packaging Details:	Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	80,000 pcs monthly

Contact Now

Detailed Product Description

Part Name:	Anchor Bearing Plate	Material:	Gray Iron
Application:	Concrete Construction	Type:	Round Anchor
Size:	Accept Customized	Samples:	Available
High Light:	post tensioning system , post tension accessories

Prestressed Post Tensioning Cast Iron Round Anchor Bearing Plate

Specification

The Data Paraments of BM15
Types	Flat Anchor Head		Flat Bellows		Flat Bearing Plate			Spiral Reinforcement
Types	A	B	C	D	E	F	L	G	H	n	t
BM15-2	80	46	52	22	160	70	140	160	100	5	45
BM15-3	115	46	65	22	180	70	150	180	100	5	45
BM15-4	150	46	74	22	220	80	210	220	100	5	45
BM15-5	185	46	90	22	260	80	270	260	100	5	45

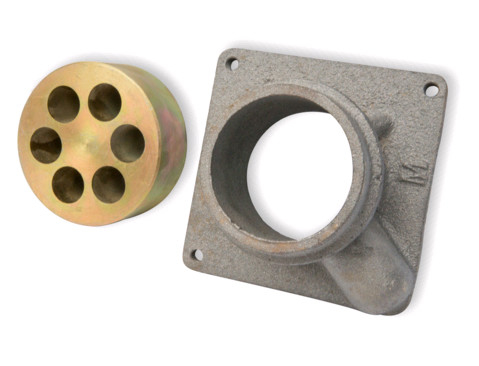

Prestressed Post Tension Anchor Cast Iron Round Anchor Bearing Plate 0

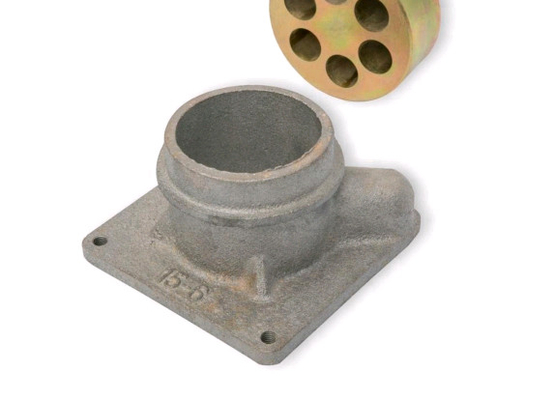

Prestressed Post Tension Anchor Cast Iron Round Anchor Bearing Plate 1

Features

1.Wide application: it is adaptable for stand with diameters of Φ'8, Φ'9, Φ'11, Φ'12.7, Φ'15.2 and Φ'18 with various strength from 1570Mpa to 2000Mpa as well as for high tensile steel wires with diameters of Φ'5, Φ'7 with the standard strength from 1570Mpa to 1860Mpa.

2.YJM anchoring system is available for full range of tendon sizes (1-55 strands). In addition, our company can produce anchorages of any type of arbitrary holes in accordance with demands of customers.

3.Good in terms of self-anchoring and easy operation;

4.High anchoring efficiency factor, stable and reliable;

5.Be capable of repetitive stretching and strong in terms of anti-interference capability.

About Us

We are in production of prestressed machinery equipment products and anchor products. Its products are widely used in road and bridge, municipal, high-rise buildings, power plant construction, geotechnical Anchorage, deep excavation works,etc. We sincerely hope that can together with countries in the world to promote the application and development of our prestressed, create brilliant career.

FAQ

Q: Do you provide samples ? is it free or extra ?
A:Yes, we can offer samples for free, but the express cost would be on buyer’s account.
Q:How long is your delivery time?
A:Generally it will be 5 to 15 days according to quantity and type of the products.
Q:What is your terms of payment?
A:We accept T/T, L/C, D/P and D/A. For T/T payment, we accept 30% prepayment in advance and the balance payable against the copy of B/L.
