Anti - Rust Post Tension Anchor Cast Iron Anchor Plate And Anchor Head

Anti - Rust Post Tension Anchor Cast Iron Anchor Plate And Anchor Head

  • Anti - Rust Post Tension Anchor Cast Iron Anchor Plate And Anchor Head
  • Anti - Rust Post Tension Anchor Cast Iron Anchor Plate And Anchor Head
Anti - Rust Post Tension Anchor Cast Iron Anchor Plate And Anchor Head
Product Details:
Place of Origin: Mainland China
Brand Name: NC124
Certification: ISO9001,CE,SGS
Model Number: 124
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: $1-50
Packaging Details: Wooden Case
Delivery Time: 25 days
Payment Terms: T/T, L/C
Supply Ability: 60,000 pcs monthly
Contact Now
Detailed Product Description
Product Name: Anchor Block Diameter: 12.7MM 15.24MM
Application: Concrete Construction Prestressed Material: Cast Iron
Surface Treatment: Anti-rust Size: Standard
High Light:

post tensioning system

,

prestressed anchorage

Post Tensioning Arc Slab Anchorage Cast Iron Anchor Plate And Anchor Head



Product Description



Material Wedge: 20CrMnTi, Anchor head: QT450, Anchor bearing plate: HT200
Hardness Wedge:78-85HRA, Anchor head: 25-36HRC
Steel strand's diameter 12.7mm/15.2mm
Wedge type 2 Pieces/set
Certificate ISO, SGS
Packing Free fumigation wooden case
Produce Standard Anchor wedge:Up to GB/T3077-2015, Anchor head: Up to GB/T3077-2015, Anchor bearing plate: Up to
GB/T9439-88
Full set including anchor head, wedge, bearing plate, spiral reinforcement
Test Metallographic Analysis and Testing of magnetic particle flaw detection



Flat stressing anchorage consist of flat working anchor head, working wedge ,flat anchor bearing plate and flat spiral reinforcement.

The products can be divided into two types,VLM15 and VLM13 according to their strand diameters.It can be used to anchorφ12.7~12.9mm,φ15.1~15.9mm,standard strength 1470~1960Mpa low relaxation and high strength PC strands, and can be also to 7φ5,7φ7,strength 1470~1770Mpa PC steel wires.

As the name suggest, it is the same as stressing anchorage, only that the shape is flat. Flat stressing anchorage is common on slab on grade, side walls of hollow core beams / girders, transverse post-tensioning on box girders deck and flat slab.



Product Show

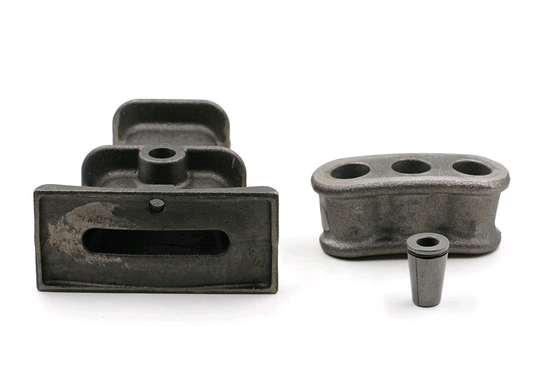

Anti - Rust Post Tension Anchor Cast Iron Anchor Plate And Anchor Head 0



Packaging



carton packing or wooden box



Delivery time



Depend on order quantity. Normally within 20 days after receiving the deposit or copy of L/C at sight.



Shipping



COSCO, MAERSK, K-LINE, CSAV, CMA, PIL, HPL, MSC, OOCL, HANJIN, EVER GREEN, etc.





Company Information



Our products are extensively applied in many projects such as highways, railways, bridges, building constructions, hydroelectric projects, TV towers, large containers, rock anchors and ground anchors.



We have a great team to supply professional design, excellent servise, high quanlity products, fast delivery and on time after-sales, so that our products were sold to firms all over the word. And have more than 8 years experience for international trade. Welcome to cooperation with us to reach your high quanlity and best service request.



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
