Place of Origin: | Ningbo,China |
Brand Name: | NC149 |
Certification: | ISO9001, SGS |
Model Number: | 149 |
Minimum Order Quantity: | 50 pcs |
---|---|
Packaging Details: | Wooden Case |
Delivery Time: | 25 days |
Payment Terms: | T/T, L/C |
Type: | Concrete Wedge Anchor | Material: | 20CrMnTi |
---|---|---|---|
Application: | PC Strand, PC Wire | Color: | Black |
Weight: | 58g /86g | Length: | 36mm /44mm |
Diameter: | 24.6mm/ 28.4mm | ||
High Light: | post tensioning system,prestressed anchorage |

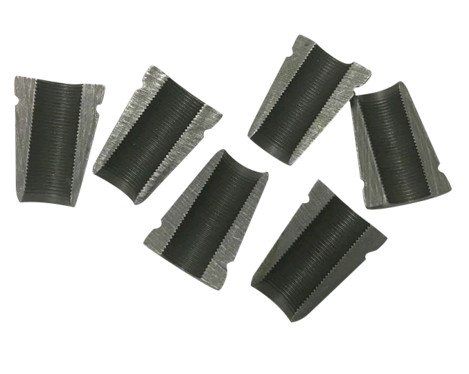

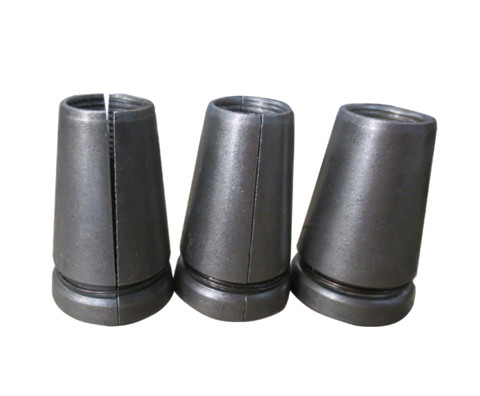

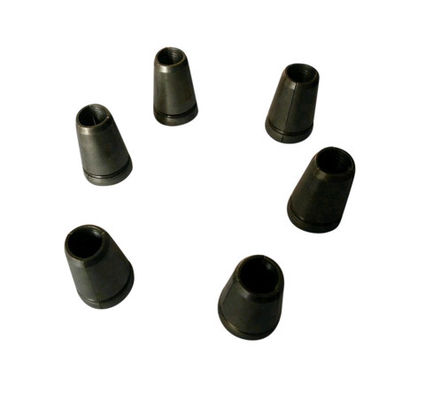

Post Tensioning Accessories 2 pcs Anchorage Wedge for Prestressed Concrete
Description
(1) The anchor wedges can be cut 2 pcs or 3 pcs . Working wedges include 2 pcs and 3 pcs, and the 3 pcs anchor wedges can be repeatedly use.
(2) Anchor wedges piece tooth's shape is reasonable, damage the surface of anchor lightly, seize the PC strand firmly.
(3) It can be used with round anchorage, flat anchorage, mining anchorage and other stressing anchorage system.
(4) It usually used in diameter of 12.7mm, 15.2mm and other PC strands.
SPECIFICATION | ||
Description | 12.7mm | 15.2mm/15.7mm(UK) |
Material | 20CrMnTi | 20CrMnTi |
Weight | 58g | 86g |
Length | 36mm | 44mm |
Diameter | 24.6mm | 28.4mm |
