Place of Origin: | Ningbo China |
Brand Name: | NC291 |
Certification: | ISO 9001,CE |
Model Number: | 291 |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | US1-USD100 |
Packaging Details: | Wooden Case |
Delivery Time: | 25-30 days |
Supply Ability: | 120,000 pcs per month |
Part Name: | T-Head Bitt Bollard | Material: | Ductile Cast Iron,gray Cast |
---|---|---|---|
Application: | Ports/docks | Type: | J Type, T-head, S Type |
Color: | White, Black, Red | Surface Finish: | Polished, Galvanized Or Bitumen Painted |
Size: | As Per Drawing | ||
High Light: | ductile iron bollards,decorative steel bollards |

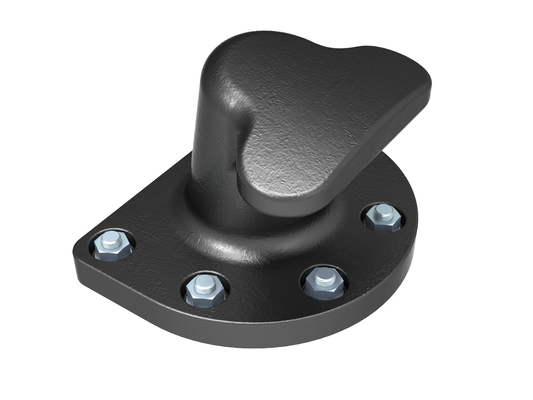

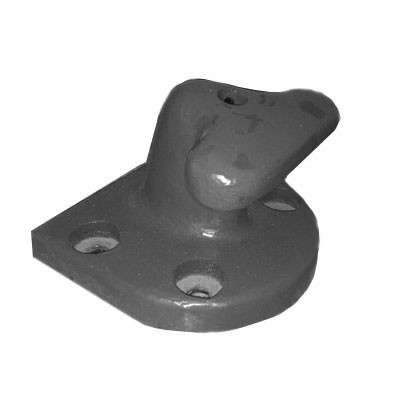

Marine Dock Mooring Cast Iron T Head Bitt Bollard Gray Cast For Ship Boat
Application
T-Head Bollard is one of the most common bollard for jetty, quay and wharf, it can handle higher line load angles than single bitt and kidney shaped bollards. It is used in various shipyards, docks and marine applications all over the America and Europe seaboards.
We also make other types of marine security bollards: single bitt bollard, double bitt bollard, staghorn shaped bollard, R type bollard, kidney shaped bollard, other standard bollards. Customized products according to customer’s drawings are allowed as well. Please send us emails if you want to know more details.
Product Details
Material: Cast Iron, Cast Steel or Ductile Iron (Spheroidal Graphite) available
Mounting Hardware: Galvanized Grade 8.8 bolts, nuts and washers or Stainless Steel available
Surface and Paint: Epoxy coating, anti-corrosion;
Bollard Capacity: 10 to 200 tonnes;
Recommended Line Angle: 0° to 50°
Allowable Line Angle: 160°
Bolts Quantity: 4 to 7;
Certificate: CCS, ABS, BV, GL etc.
Can be customized.
Bolts Qty
|
Capacity(Tonnes)
|
Dimensions(mm)
|
|||||||
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
||
4
|
10
|
200
|
216
|
236
|
160
|
106
|
218
|
120
|
32
|
4
|
25
|
245
|
350
|
305
|
250
|
150
|
285
|
127
|
45
|
5
|
30
|
290
|
430
|
410
|
360
|
190
|
360
|
150
|
45
|
5
|
50
|
365
|
550
|
540
|
430
|
250
|
475
|
200
|
50
|
5
|
75
|
430
|
650
|
650
|
520
|
300
|
570
|
235
|
70
|
5
|
80
|
415
|
518
|
540
|
430
|
250
|
430
|
245
|
55
|
7
|
120
|
490
|
678
|
642
|
600
|
330
|
584
|
290
|
65
|
7
|
200
|
520
|
950
|
780
|
680
|
360
|
670
|
306
|
80
|
7
|
200
|
600
|
950
|
780
|
680
|
360
|
670
|
386
|
80
|
8
|
200
|
656
|
1020
|
930
|
800
|
460
|
830
|
349
|
100
|
2. Welcome you come to visit our factory and show you our excellent quality.
3. Reliable quality and strict quality control team make you never worry about quality issues.
4. One stop source, all related products requirement can source from us.
5. Our company have strict standard to the surface treatment. The surface are smooth and bright. And we will do the best packing that we can do for you.
