Prestressing Concrete Post Tension Anchor Wedges And Barrels Steel Material

Prestressing Concrete Post Tension Anchor Wedges And Barrels Steel Material

  • Prestressing Concrete Post Tension Anchor Wedges And Barrels Steel Material
  • Prestressing Concrete Post Tension Anchor Wedges And Barrels Steel Material
Prestressing Concrete Post Tension Anchor Wedges And Barrels Steel Material
Product Details:
Place of Origin: Ningbo China
Brand Name: NC134
Certification: ISO 9001
Model Number: 134
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: According to customers' requirements
Delivery Time: 25 days
Payment Terms: T/T, L/C
Supply Ability: 160,000 pcs per month
Contact Now
Detailed Product Description
Material: Steel Product Name: Anchor Barrels And Wedges
Application: Bridge Feature: Easily Assembled
HS Code: 7316000000 Standard: ISO
High Light:

post tension accessories

,

prestressed anchorage

Prestressing Concrete Post Tension Anchor Wedges And Barrels Steel Material



Description


Barrel and Wedges are the key part of anchorage system, which is made by high-class alloy steel 20CrMnTi. Its form is divided into two-chip and three-chip. The system apply to the two-chip BJM15-J, it can be used for ring anchorage, flat anchorage, but also used for porous coupler. It can used to lock the steel strand wires on / under classes of 2000Mpa standard strength, which is usually in diameters of 12.7mm / 12.9mm / 15.2mm / 15.7mm.

Applications

It has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials, such as bridge construction, railway and highway construction, buildings and channel construction, etc.

Product Details

1. Type: Round
2. Related Parts: Anchor Ring / Plate, Wedge, Base Plate etc.
3. Have a high anchor efficiency and very good performance
4. Easy to use, safe and reliable

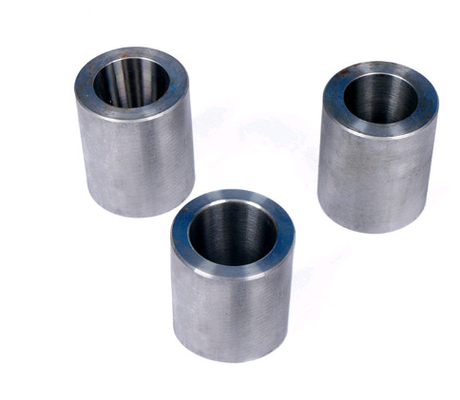

Prestressing Concrete Post Tension Anchor Wedges And Barrels Steel Material 0

Our Service



Our company can design and produce anchorages of any specifications according to demands of customers.



Wide applications it is adaptable for strands with diameters from Φ9.5mm to Φ21.6mm, with standard strength of 2000Mpa or lower. With Compacted structure, easy operation, safety and laborsaving, high anchoring efficiency and reliable anchorage.



Our anchorage products are widely used for different projects, such as road and railway bridge, large scale industrial factory, high rise building, Hydroelectric dam, etc.

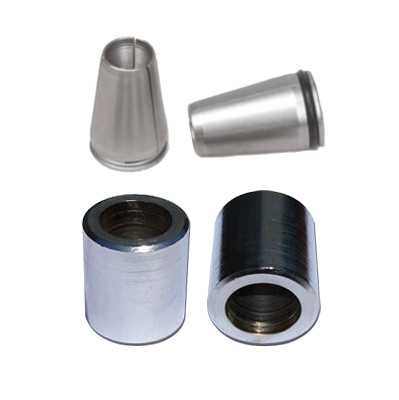

Prestressing Concrete Post Tension Anchor Wedges And Barrels Steel Material 1



FAQ



1. Q: Why choose us?
A: We have a professional R&D team and decades of experienced engineers, our products has been developed and debugged after many times of data. A great sales performance has been widely recognized by the community.

2. Q: What is the payment method?
A: The irrevocable L/C, T/T, Western Union. For the T/T payment, there is 30% prepayment in advance and the balance payable against copy of B/L.

3. Q: How do the customers know the real products?
A: The customers can visit our factory, and we also can provide sample if you pay for the express cost.

4. Q: Can you accept OEM / ODM service?
A: Yes, we can provide customers OEM / ODM service.
